Hydraulic Stack Parking G+1
Hydraulic Stack Parking G+1

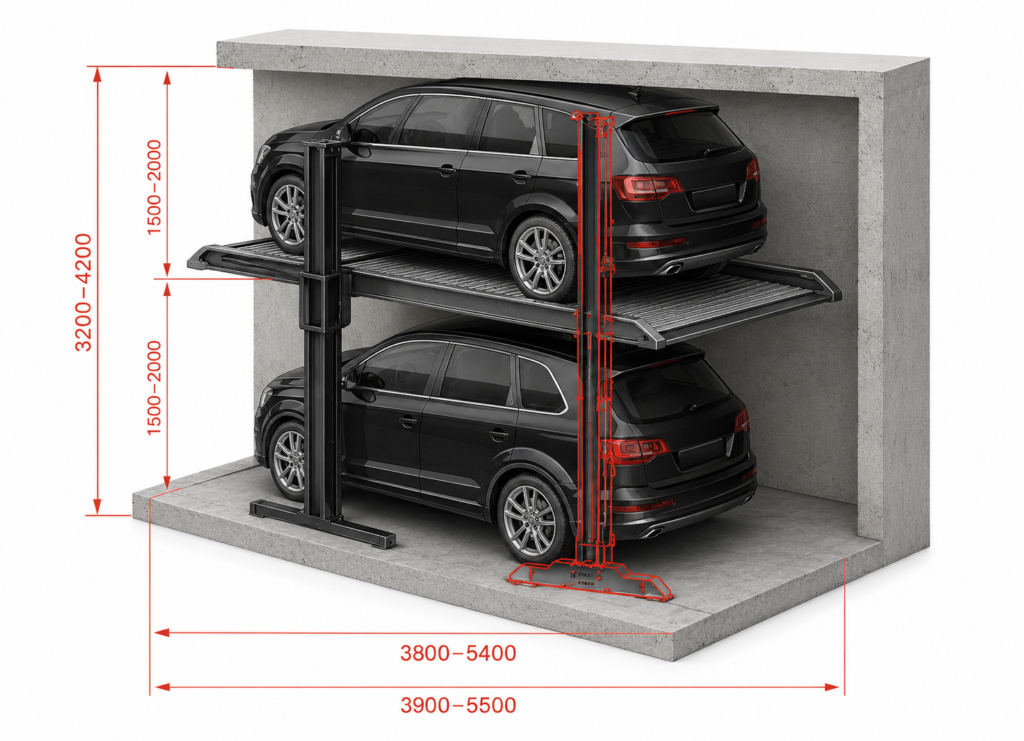

The Hydraulic Stack Parking G+1 Parking System by Elite Car Parking System uses a vertically movable platform designed for efficient space utilization. A vehicle is parked on the platform at ground level, and once the platform is lifted upward, an additional car can be conveniently parked underneath.
This smart and space-saving parking solution is ideal for residential apartments, commercial buildings, and areas with limited parking space, offering safe operation, durability, and maximum parking efficiency.
General Specifications
- Capacity: 2000 kg per car
- Drive Type: Hydraulic
- Finish: Sand blasted, Epoxy Painted & Hot Dip Galvanized Platform
- Motor: 3 HP, 3 Phase Induction
Structural Load
- Vertical Load: 2000 kg
- Horizontal Load: 700 kg
Electrical Requirements
- Power Supply: 415V AC, 3 Phase, 50 Hz
- Protection: 63 Amp, 4 Pole MCB
- Cabling: 4 Core 2.5 sq.mm Armored Copper Cable with Earthing

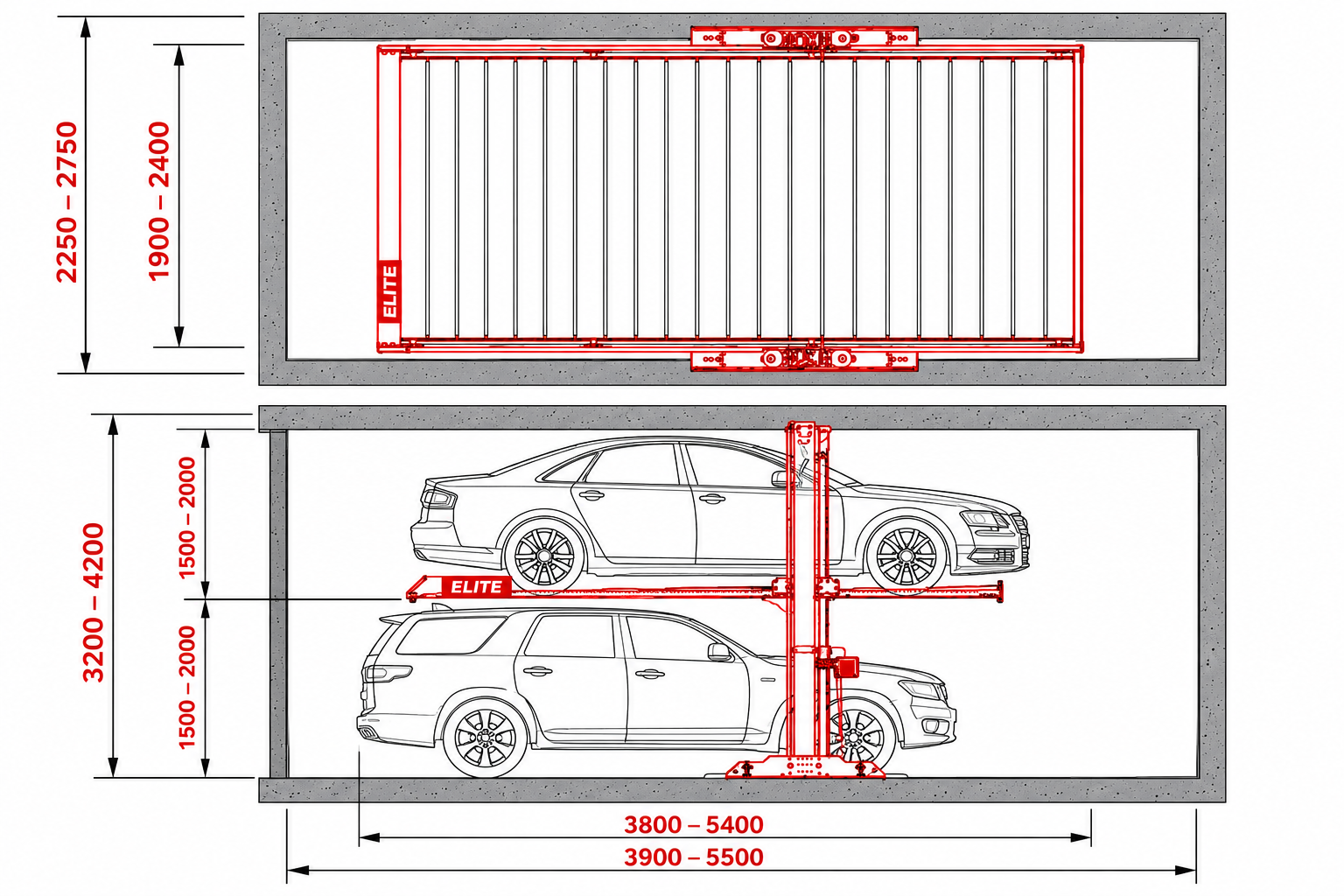

Car Diamensions Table
Height Details
Width Details
Length Details
Height Details
| Height Available (H) | 3800 |
| Upper Car Height (G+1) | 1600 |
| Drive Through Car Height (G) | 2000 |
Width Details
| Platform Width(w) | 1900 (min) | 2400 (max) |
| Total Width Required | (W+350) | |
Length Details
| Total Available Length | 4500 (Standard) |
| Platform Length | 3800 (Standard) |
| Car Length | Total Available Length-100 |
