The Tower Parking System by Elite Car Parking System, Nagpur is a fully automated vertical parking solution designed to deliver maximum parking capacity within minimal ground space. Using an advanced elevator-based mechanism, vehicles are seamlessly transported to designated slots across multiple levels. Ideal for high-density urban areas, commercial hubs, and premium residential projects, this system is perfect where land availability is limited but parking demand is high.
Key Features:
- Maximum Cars, Minimum Footprint: Optimizes vertical space, ideal for tight urban locations
- Fully Automated Operation: Scan or tap to park and retrieve your vehicle effortlessly
- Above & Below Ground Flexibility: Custom-designed to suit narrow, irregular, or compact plots
- Safe & Secure: No human entry inside the system, reducing risk of damage or theft
- Smart Customization: Can be tailored to building height and project requirements
- Optional Turntable Integration: Ensures smooth and convenient vehicle entry and exit
General Specifications
- Capacity: 2000 kg per car
- Drive Type: Traction
- Finish: Sand blasted, Epoxy Painted & Hot Dip Galvanized Platform
- Motor: 18.5 Kw Horizontal Motor: 1.5 Kw Turn Table Motor: 1.5 Kw
Structural Load
- Varies with change in number of grids and levels in a puzzle and type of installations (indoor or outdoor), contact us for details.
Electrical Requirements
- Power Supply: 415V AC, 3 Phase, 50 Hz
- Protection: 63 Amp, 4 Pole MCB
- Cabling: Cable from main switch to MCB: Note: Extra width and length is required for baseplate in case of over ground puzzle for outdoor systems, column sizes may increase for installations with more than 4 levels which may require extra width and length Width of platforms in the pit will be 100 mm less than upper level platform.

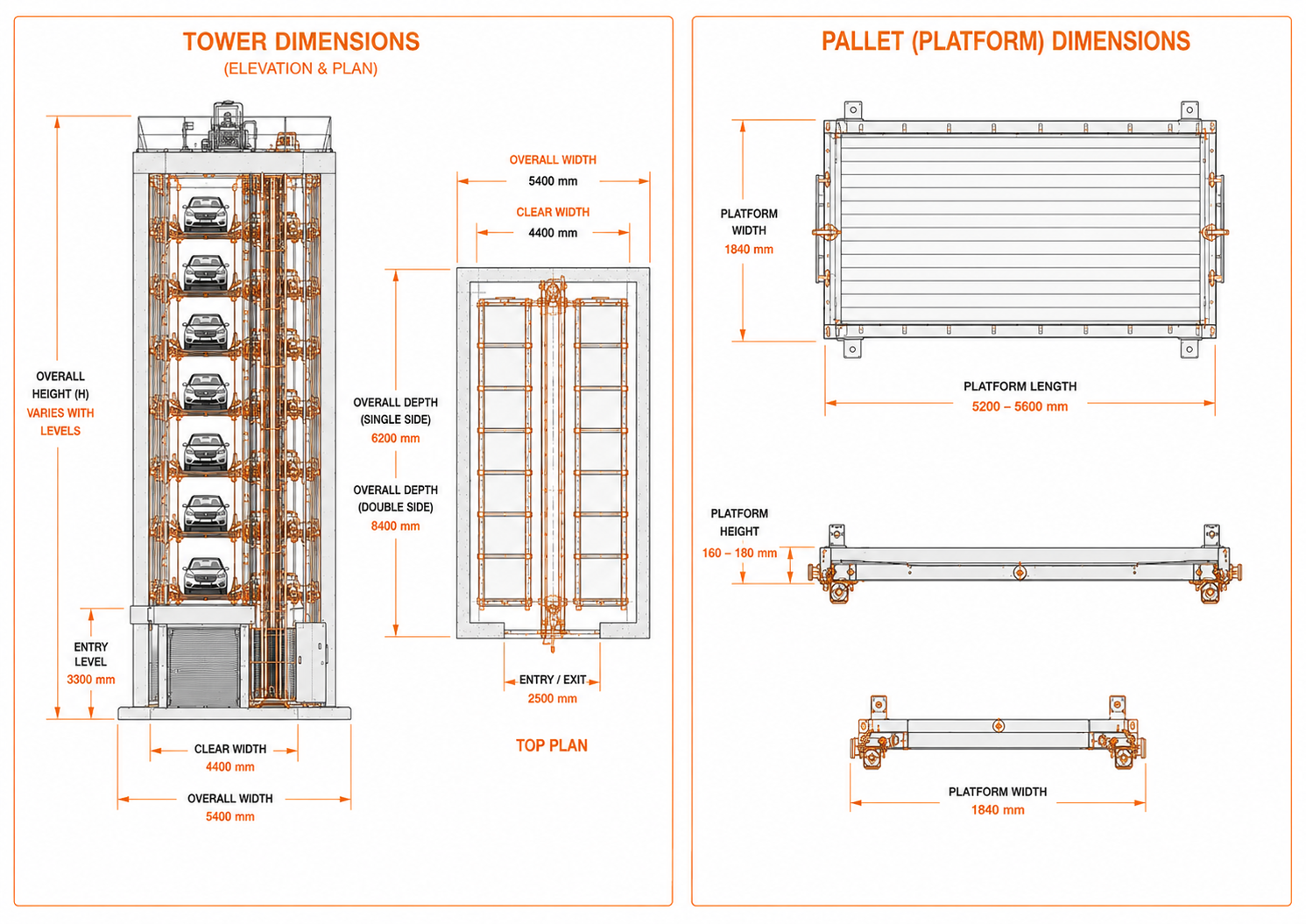

Car Diamensions Table
Height Details
Width Details
Length Details
Height Details
| Type | Indoor | Outdoor |
|---|---|---|
| Height Required Above Ground (Without Turntable) | (n(A+100)+m (B+100))+6400 | (n(A+150)+m (B+150))+6400 |
| Height Required Above Ground (With Tuntable) | (n(A+100)+m (B+100))+6700 | (n(A+100)+m (B+100))+6700 |
| Pit Depth Required Below Ground | (u(A+100)+v (B+100))+1800 | (u(A+150)+v (B+150))+1800 |
Width Details
| Type | Indoor | Outdoor | |||||
|---|---|---|---|---|---|---|---|
| Platform Width | 1840 mm | 1840 mm | 1840 mm | 1840 mm | 1840 mm | 1840 mm | 1840 mm |
| 0-1 | 5050 | 5250 | 5450 | 5650 | 5850 | 6050 | 6250 |
| 0-2 | 7470 | 7770 | 8070 | 8070 | 8370 | 8670 | 8970 |
| 0-3 | 9685 | 10085 | 10485 | 10285 | 10685 | 11085 | 11485 |
| 1-1* | 6450 | 6750 | 7050 | 7050 | 7350 | 7650 | 7950 |
| 1-2 | 9010 | 9410 | 9810 | 9610 | 10010 | 10410 | 10810 |
| 1-3 | 11225 | 11725 | 12225 | 11825 | 12325 | 12825 | 13325 |
| 2-2 | 11225 | 11725 | 12225 | 11825 | 12325 | 12825 | 13325 |
| 2-3 | 13440 | 14040 | 14640 | 14040 | 14640 | 15240 | 15840 |
| 3-3 | 15655 | 16355 | 17055 | 16255 | 16955 | 17955 | 18355 |
Length Details
| Type | Indoor Bracket | Indoor Structure | Outdoor | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Car Length | 4500 | 5000 | 5500 | 4500 | 5000 | 5500 | 4500 | 5000 | 5500 |
| Total Available Length | 5300 | 5800 | 6300 | 5400 | 5900 | 6400 | 5900 | 6400 | 6900 |
